I. Analysis of the Strength Characteristics of Titanium Screws
1.1 Mechanical Performance Advantages
Tensile and yield strength performance
The tensile strength of TC4 titanium alloy screws (Ti-6Al-4V) reaches 900-1100 MPa, which is comparable to that of high-strength steel of grade 10.9 (such as 42CrMo). However, its specific strength (strength-to-density ratio) is 250 kN·m/kg, which is 2.2 times that of structural steel.
After solution strengthening, the upgraded material GR5 (Ti-6Al-4V ELI) has its tensile strength increased to 1100 MPa, with an elongation rate maintained at 8% to 10%. It is suitable for dynamic load scenarios such as automotive suspensions and aircraft engines.
The yield strength distribution range is 950 – 1150 MPa, which is 300% higher than that of traditional 304 stainless steel. It still maintains 85% of its room temperature strength at 350℃ high temperature.
(2) Lightweighting benefits
With a density of 4.5 g/cm³, it is 42% lower than that of steel (7.8 g/cm³), and the weight of a single M10×50 specification screw is reduced by 46%.
In the application of avionics equipment brackets, the weight reduction benefit can lead to a fuel efficiency improvement of 0.8% to 1.2%.
1.2 Special Environmental Adaptability
Low-temperature toughness: In a liquid nitrogen environment at -196℃, the retention rate of impact toughness is over 90%.
Biocompatibility: Meets the ISO 5832-3 standard for medical implants, with a surface porosity of less than 5%.
II. Mechanism of Interface Integration Issues and Engineering Responses
2.1 Research on Fusion Mechanism
Microscopic action mechanism
Electrochemical affinity: The potential difference between titanium (Φ = 1.54 V) and aluminum (Φ = 0.34 V) is 1.2 V, which forms a microcell in a humid environment, accelerating diffusion.
Frictional chemical effect: During assembly, the surface oxide film (TiO₂, thickness 5-20 nm) breaks, and the newly exposed metal interface undergoes cold welding when the contact pressure exceeds 200 MPa.
(2) Factors Affecting Acceleration
The diffusion rate increases by 3 to 5 times at a temperature of 80℃.
When the surface roughness is Ra > 3.2 μm, the effective contact area increases by 40%.
2.2 Typical Case Analysis
Case 1: Road Bike Fork Conversion Seat
Fault phenomenon: The M5 titanium alloy screw and the 6061-T6 aluminum base are completely fused.
Failure consequence: Disassembly requires the use of a reverse tap (left-hand thread) in conjunction with liquid nitrogen cold disassembly, and the maintenance cost amounts to 70% of the value of a new part.
Root cause: Micro-motion wear caused by the failure to use interface release agent and dynamic load.
2.3 System Solution
(1) Interface engineering control
The preferred anti-fusion agent is a composite paste containing molybdenum disulfide (MoS₂) or graphene, which can reduce the friction coefficient to 0.08 – 0.12.

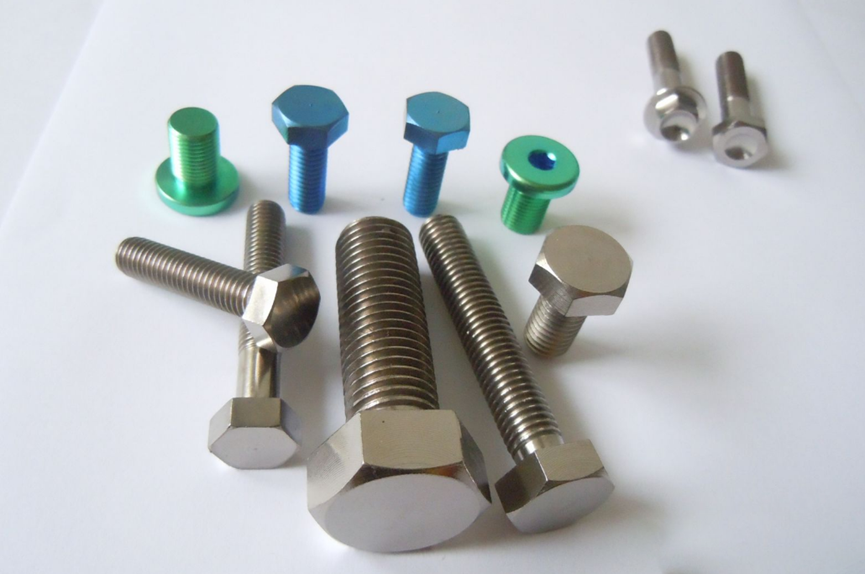

Anodizing treatment: Forms an oxide layer 10-25 μm thick, with surface hardness reaching HV800.
(2) Assembly Process Specification
Pre-tightening force control: Set the torque value at 0.6 – 0.8σ_y (yield strength).
Anti-loosening treatment: Use Nord-Lock wedge washers to maintain over 95% of the preload force in a vibrating environment.
III. Optimization Suggestions for Engineering Applications
3.1 Selection Decision Guide
Aerospace structural components: TC4 + β phase stabilized material is recommended, with micro-arc oxidation surface treatment, and it is preferred to be matched with titanium alloy or composite material substrates.
Automobile chassis: GR5 material is selected and nitriding treatment process is adopted, combined with a stainless steel bushing transition structure.
Marine equipment: Compatible with Ti-5111 alloy, combined with plasma spraying technology, and isolated with ultra-high molecular weight polyethylene gaskets.
3.2 Full Life Cycle Management
Installation stage
Carry out the three-level cleaning procedure: degreasing → pickling (HF:HNO₃ = 1:3) → passivation.
Assembly is carried out using the torque-angle method: the initial torque is set at 30% of the final value and is applied in three stages.
(2) Operation and Maintenance Phase
Establish a database of 50 to 100 disassembly cycles and optimize the component replacement strategy.
The state of the stress concentration area of the thread is monitored in real time by applying eddy current testing technology.
Conclusion
The engineering application of titanium alloy fasteners requires the establishment of a “material-process-structure” collaborative design system.
By using surface modification technology to increase the interface contact resistance to above 10⁵ Ω·cm, and combining finite element simulation to optimize the stress distribution, the high specific strength advantage can be maximized, while reducing the integration risk by more than 80%.
It is recommended to establish a dedicated assembly specification in accordance with the ASME B18.2.1 standard to continuously enhance the reliability of lightweight structures.
